Tablet Compression Machine: Types, Functional Parts

Tablet Compression Machine (also referred to as  Tablet press machine, tablet making machine, tablet machine, tablet punching machine) is a mechanical device that is used to compress the granules or mixture of API and excipients to uniform and predetermined size, shape, and weight of tablets for research, pilot-scale, and full production. You may also read: Evaluation of tablets, Friability test of tablets, Tablet defects, Tablet coating defects.

Types of Tablet Compression Machine

Based on punch number, tablet press machine can be classified into:

A. Single punch Tablet Compression Machine /Single station/Eccentric tablet press machine

Single punch tablet press machine is the simplest machine that uses a pair of punches (upper and lower) and a die to compress granules/powder mixture to make tablets for research and small-scale production.

Single punch Tablet press Machine

B. Multi punches Tablet Compression Machine/ Multi-station/ Rotary presses

Multi-station press is a mechanical device that unlike the single punch tablet press has several stations which rotate to compress granules/powder mixture to uniform size, shape, and weight of tablets with high productivity in a short time. It was developed to raise the productivity of tablets.

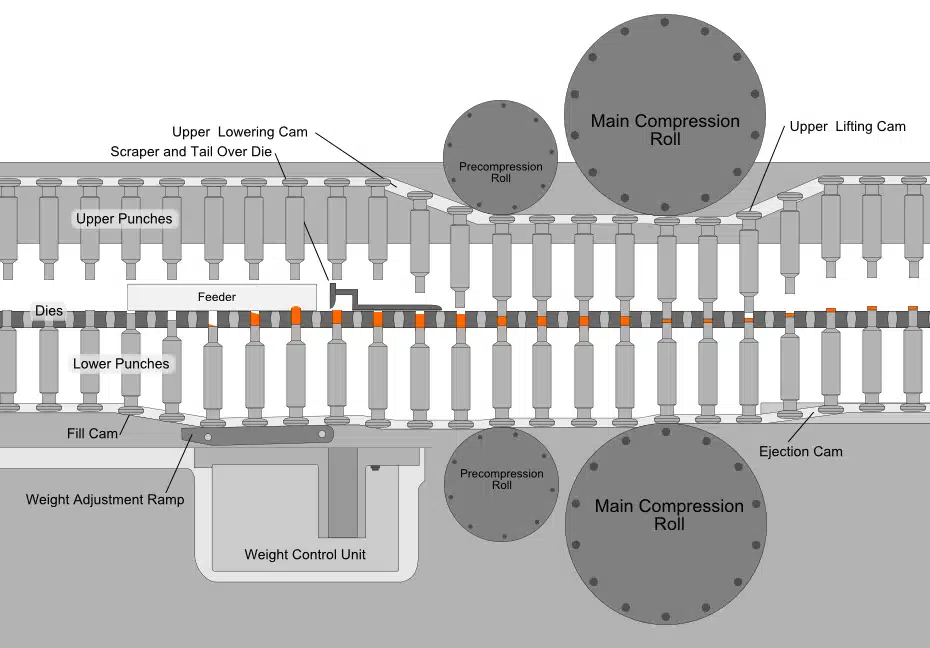

Animation of a tablet compression machine

Common name of tablet compression machine manufacturers

Tablet compression machine parts

Core functional parts of the rotary tablet press machine are:

Hopper

The hopper holds and supplies the granules/powder mixture (API and excipient) to the feeder system. It is the input point of powder mix or granules to tablet press for compression of tablets. Granules or powder mix may feed manually or using automated systems.

Hopper Tablet press

Feeder System or Feed Frame

Feeder System: Feeder System helps to force the feed of the granules into the die cavity especially during faster rotation. It also mixes the granules and inhibits the separation of granules. Feeder System also called force feeder. Force feeder of tablet compression machine contains two vital parts:

  • Feed Peddles: It rotates continuously and ensure consistent and accurate granules feeding into the die cavity in a high-speed machine.
  • Feeder Housing: Through the feeder housing, granules for tablet from the hopper will enter into the die system.
Feeder System or force feeder tablet press

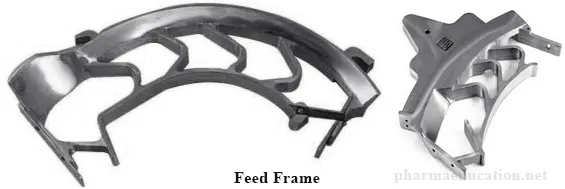

Feed Frame

Some tablet press machine have a feed frame rather than Feeder System (Feeder Housing and Feed Peddles). Feed frame delivers the granules /powder mix into the die cavity under the influence of gravity. Tablet scraper and excess granules stripper must attach with feeder system or feed frame.

Feed frame of Tablet Press



Excess granules stripper

This part of tablet press machine take away extra granules from the surface of die bore or cavity. Granules stripper is liable for controlling the volume of granules and ultimately the weight of tablets.

Granules Stripper tablet press

Die

Die defines the size and shape of the tablet. Powder mix or granules are compressed into the desired size, diameter, and shape of tablets in die bore or die cavity.

Die Punches of tablet press

Punch

Two punches (upper and lower) compress the granules/powder mix in the die bore. The lower punch moves upward and upper punch moves downward and compresses the tablet within the die cavity. Then the upper punch moves upward and lower punch moves upward.

Turret

Turret hosts the die as well as upper and lower punches on its holes and ensures the position of die bore and two punches (lower and upper) for tablet compression process. The turret is the heart-like part of the tablet press machine.

Turret tablet press

Cam track

Cam track guides the movement of both the upper and lower punches in tablet compression process that play an integral role in ensuring a smooth tableting process. As the turret rotates, the cam track helps to move the punches in up and down motion.

Cam track tablet press

Compression Rollers

Tablet press machine have rollers that exert a predetermined and sufficient amount of force to compress the granules into tablet with desired hardness. Most of tablet press machine have two sets of compression rollers.

Pre-compression roller: They give the initial compression force. The aim of pre-compression is to eliminate air that could be in the die or granules / powder mix.

Main compression roller: It exerts sufficient compression force to compress the granules into tablets. The rollers stay stable with no vibration during the entire compression process to ensure consistent thickness and size of the tablets.

compression roller tablet press

Ejection cam

Ejection cam guides the lower punch upwards assisting the ejection of tablets from the die bore or cavity after compression. The ejection cams slowly and gradually push the lower punch upwards.

Tablet compression machine ejection cam

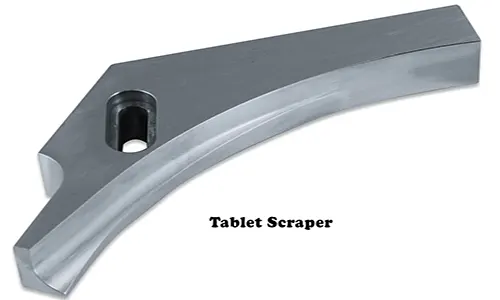

Take-off Blade/Tablet Scraper

This is fitted in front of the feed frame or feeder system and scrap the compressed tablet to the discharge chute. Tablet scraper (also known as takeoff scraper or tablet take-off) pushes the compressed tablets away from die table of the compressing machine to the discharge chute.

Take-off Blade tablet press

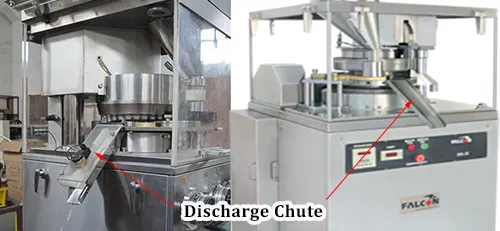

Discharge chute

Guides the compressed tablets to a collection drum or bin.

Discharge-chute of tablet compression machine

Tablet Weight Controller

This is used to adjust the volume of the granules to be compressed and so determines the weight of the tablet with the help of different movements of the cam systems, material will flow into the die cavity depending on the position of the punches.

Other Tablet Compression Machine Parts

  • Safety System
  • Touch Screen display and control panel
  • Belts, Gears, Electric Motors
  • Lubrications Systems
  • Hydraulic Pump system

Applications of Tablet Compression Machine

  1. The key applications of Tablet Compression Machine is used to compress the granules or mixture of API and excipients to uniform and predetermined size, shape, and weight of tablets for new tablet development and small batch production.
  2. To compress the granules/ powder mix into tablets for pilot-scale and full-scale production.
  3. To compact the blend of powder in the dry granulation method. Compression vs Compaction
  4. To compress multi-layer tablets such as bi-layer, tri-layer, four-layer, and five-layer tablets.

Advantages of Single Punch tablet compression machine

  1. Rational and small.
  2. Easy to operate.
  3. Easy to clean.
  4. Ideal for new tablet development and small batch production.
  5. Due to single a set of punches, less chance of weight variation.
  6. Less noise production.
  7. Minimal spare part requirements.
  8. Operate by both motor and manually.

Advantages of Multi-station/Rotary presses

  • High-speed operation.
  • Robust design and high productivity.
  • High overall equipment effectiveness.
  • Minimal product loss.
  • Low noise level in operation.
  • Compact machine with space-saving design.
  • Ease washable and high containment technology.
  • High safety system.
  • Modern Rotary presses may control digitally.
  • Cost-effective.
  • Optimized lubrication system.

Cleaning and maintenance of Tablet Press or tablet compression machine

  1. After an operation, Turn off the electric supply.
  2. Dismantle all the common jointed parts such as guard, hopper, feed frame/ feeder system.
  3. Remove powder dust and wasted granules with the vacuum cleaner.
  4. Dismantle all punches and punches and die.
  5. Clean all surfaces of the tablet press machine with a dry lint-free soft cloth and then by using compressed airflow.
  6. Wipe out the surfaces of the tablet press machine and its functional parts with 70% v/v Isopropyl Alcohol.
  7. Clean the hopper, feed frame/ feeder system, and other accessories with potable water and rinse with purified water

Maintenance (Lubrication and Storage) of Tablet press machine

Lubrication is done by using H1 lubricants like castor oil or liquid paraffin, but there is a problem of the rancidity of oil. Thus nowadays several synthetic liquid lubricants and solid or semisolid lubricant (grease) are available such as

  • ET- 10S, ET- 20S, ET- 90S, ET- 140S Lubricants oil
  • ET- 2S grease
  • HT-1000G Lubricating Grease

Differences between single punch tablet press and rotary tablet press

  1. The vital functional difference between a single punch tablet press and a rotary tablet press is Single punch tablet presses have 2 punches but utilize only upper punch for compression of granules to make tablets. On the other hand, rotary presses may have multiple punches and utilize both upper and lower punches.
  2. Setting and operation of Single press is very simple while operation of rotary tablet press is complex.
  3. Productivity of Single press is less whereas Productivity of rotary tablet press is more.
  4. Single punch tablet press is suitable for small-scale production and research and development of tablet formulation. On the other hand, the rotary tablet press is suitable for research and development, scale-up, and large-scale production.

Keywords: Tablet Compression Machine, Tablet press machine, tablet making machine, tablet machine, tablet punching machine, Tablet Compressing Machine. iv-bolus vs iv-infusion
